REVIEW: NEC PA241W Part 15

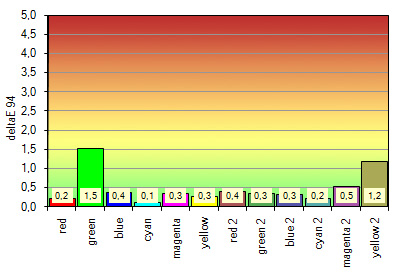

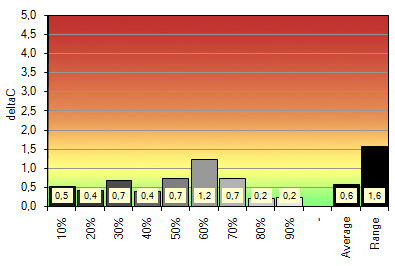

Comparison with the AdobeRGB working colour space with regard to the monitor profile

Parameter	Target	Measured
White point / CCT Kelvin	D65 (6502)	6575
White point XYZ (normalised)	95.04 100.00 108.88	95.06 100.00 109.98
DeltaE from target white point	-	0,67
DeltaE from black body curve*	- (0,08)	0,14
Luminance / cd/m²	140	139,4
Black point / cd/m²	Native	0,21
Contrast / x:1	Native	663

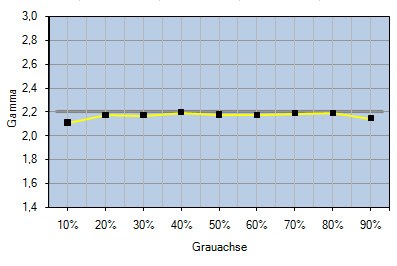

Gradation / average	Gamma 2.2	~2,17 (avg.)

* CCT reference

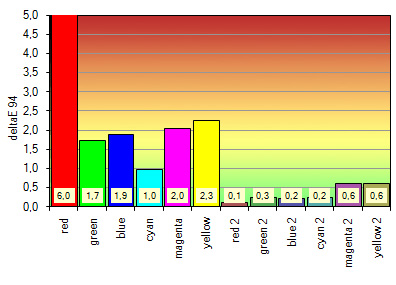

Comparison with the ECI-RGB 2.0 working colour space with regard to the monitor profile

Parameter	Target	Measured
White point / CCT Kelvin	D5o (5002)	5073
White point XYZ (normalised)	96.42 100.00 82.51	96.14 100.00 83.62
DeltaE from target white point	-	1,01
DeltaE from black body curve*	- (0,07)	0,29
Luminance / cd/m²	140	140,3
Black point / cd/m²	Native	0,27
Contrast / x:1	Native	519
Gradation / average	L*	L*

* CCT reference
