REVIEW: HP ZR22w

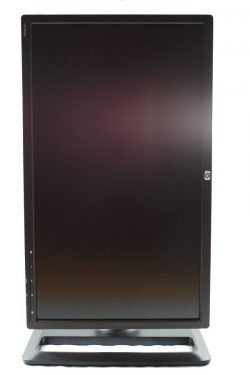

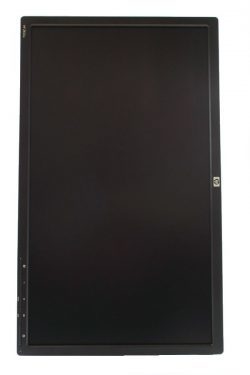

Warranty LCD / Backlight (Years): 3 Years incl. Pickup Service Max. pixel faults (according to ISO 13406-2): Class II Panel size [inch] / Panel technology: 21,5 / S-IPS Pixel size [mm]: 0,248 Native resolution: 1.920 x 1.080 (16:9) Visible screen size / diagonal [mm]: 476,6 x 268,1 / 546,1 Inputs, connectors: 1 x DVI-D (digital), 1 x DisplayPort (digital), 1 x D-Sub (analogue) Vertical frequency [Hz]: 50 - 76 Max. horizontal frequency / video bandwidth [kHz/MHz]: 24 - 94 / - Color mode preset / user: 3 / 1 LCD pivotable / portrait mode: Yes / Yes LCD display arm option: Yes Accessories: DVI-D cable, VGA cable, DisplayPort cable, USB cable, power cable, getting started guide, CD Dimensions (W x H x D) [mm]: 507 x 457 x 230 (with feet) Weight [kg]: 7,24 Compliance: TCO 5.0, CE, Energy Star 5.0 Power consumption On / Stand-by / Off [Watt]: < 44 / 1 / - (Manufacturer’s indication) Test date: 04.03.2011 Rating:   Picture stability: ++ (digital) ++ (analogue) Viewing angle dependency: + Contrast: +/- Color space: + Subjective impression of image quality: + Shades of gray resolution: ++ Brightness allocation: + Interpolation image quality: + Fabrication of case / frame, mechanics: ++ Operating and OSD: + Suitable for occasional gamer: ++ Suitable for hardcore gamer: + Suitable for DVD / Video: +/- Price [incl. VAT. in Euros]: 240,00

++ very good, + good, +/- satisfactory, - bad, -- very bad

Introduction

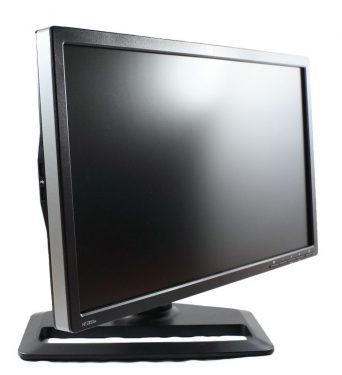

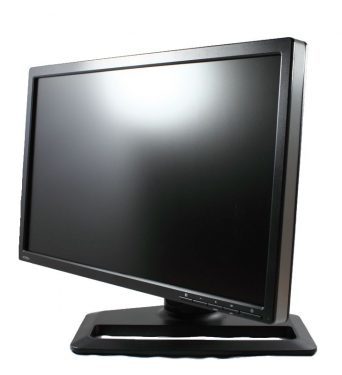

In terms of appearance, the HP ZR22w resembles its bigger brother, the popular HP ZR24w, to such an extent that the two could easily be confused. The same technology has been used for the connectors and some other features. As well as the difference in size, however, there are also other distinguishing features. The HP ZR22w is equipped with an S-IPS panel with a resolution of 1.920 x 1.080 pixels, but also offers 16:9 format. The power consumption should also be considerably lower with a typical 28 watts. All other differences that are not immediately obvious will be examined in the course of our review.

The results published in the test were obtained via the digital DVI output of an Asus AMD Radeon HD 6970. The iColor software and the Colorimetre HCFR software were used in conjunction with a spectral photometer (EyeOne Pro) for the colorimetric measurements. The minimum black value was measured using the Colorimeter DTP94. The external playback of video material was carried out using the Sony BDP-S350 Blu-Ray player, which was connected using a DVI cable and a DVI-HDMI adapter.

Scope of supply

The accessories and the base were positioned in the top section of the box and the monitor itself was located in the lower part between two thick pieces of Styrofoam and was therefore well protected.

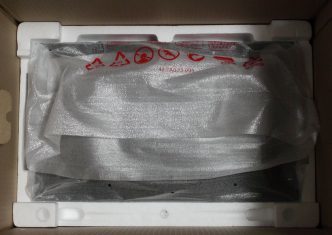

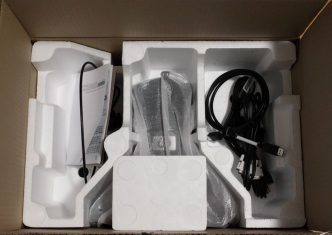

On the left, the open box with the accessories and on the right, the monitor in its packing.

The scope of supply includes a VGA cable for the analogue connection, a DVI-D and DisplayPort cable for the digital connection, a USB cable, an external device cable, a getting started guide and a CD. The CD contains a detailed manual and the driver for the monitor.

Contents:IntroductionScope of supplyDesign and mechanicsOperational noiseConnectorsPower consumptionControlsOSDImage qualityBrightnessViewing angleMeasurements and calibrationColour space comparison3D colour space comparisonEvaluation of colorimetric testProfile precisionUGRA testInterpolationInterpolation: TextInterpolation: GamesImage sharpnessResponsivenessSwitching timesOverdriveLag timeSubjective evaluationDVD and VideoVideo signal processingDeinterlacingSupported refresh ratesScalingColour models and signal levelConclusion
