REVIEW: NEC PA301W-BK Part 10

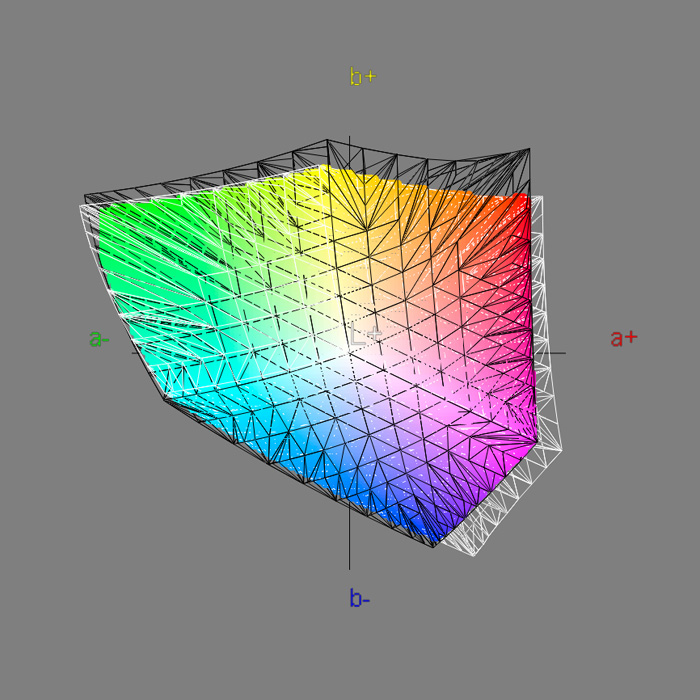

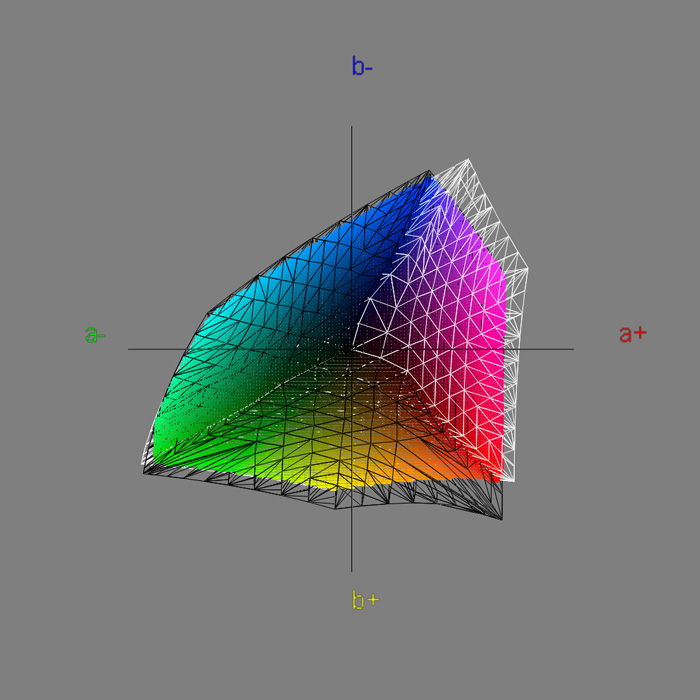

ECI-RGB 2.0: 88,5 % coverage

NEC promises almost complete coverage of AdobeRGB (98%), which we also achieved in the conditions during profiling (White point D65). Accordingly, sRGB and the ISO Coated colour space are completely covered. In colour management enabled applications, precise display including offset proofing should be possible. The same applies for internal monitor transformations within the scope of colour space emulation.

The levels of coverage correspond to the typical values for modern IPS panels with WCG-CCFL backlighting (102% NTSC). Therefore, the coverage level for ECI-RGB 2.0 is considerably lower. This gives rise to increased colour gaps and deviations, regardless of the image content. Nonetheless, it is still possible to work in this standard colour space.

Evaluation of colorimetric tests

We have evaluated the results of the colorimetric test in detail in the following section. Here, selected image modes were measured as well as the factory settings.

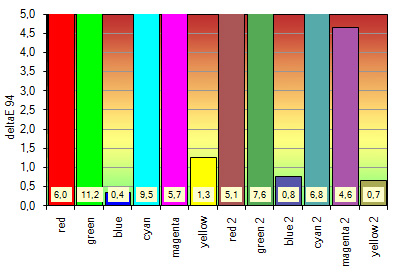

Explanation of DeltaE deviation for colour values and white point.

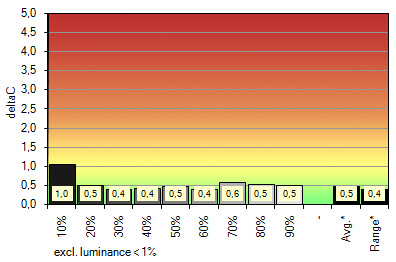

Explanation of DeltaC deviation for grey value.

Explanation of display of Gradation.

Comparison of factory settings with sRGB working colour space

Factory settings	Goal	Measured
White point / CCT Kelvin	D65 (6502)	6308
White point XYZ (normalised)	95.04 100.00 108.88	90.39 100.00 97.25
DeltaE for target white point	-	11,11
DeltaE for black body curve*	- (0,08)	10,02
Luminance / cd/m²	140,00	218,5
Black point / cd/m²	Native	0,24
Contrast / x:1	Native	910
Gradation / average	sRGB	~Gamma 2,24 (avg.)

* CCT reference
