REVIEW: NEC PA301W-BK Part 12

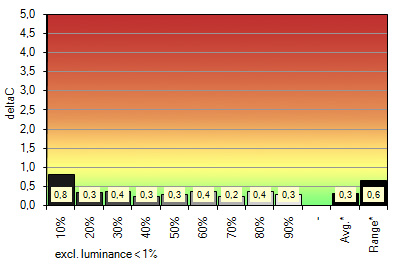

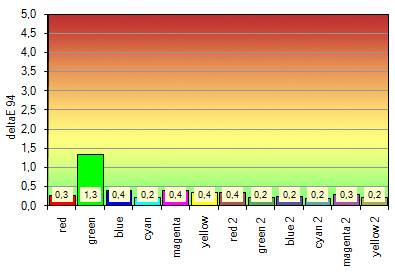

Comparison of "AdobeRGB" image mode with the AdobeRGB working colour space

AdobeRGB image mode	Goal	Measured
White point / CCT Kelvin	D65 (6502)	6260
White point XYZ (normalised)	95.04 100.00 108.88	95.47 100.00 106.51
DeltaE for target white point	-	1,64
DeltaE for black body curve*	- (0,08)	0,83
Luminance / cd/m²	140,00	156,3
Black point / cd/m²	Native	0,20
Contrast / x:1	Native	781

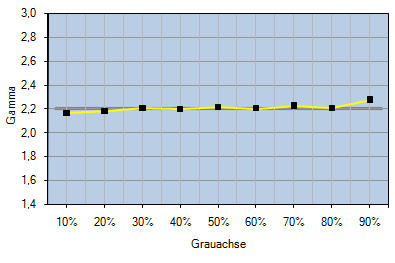

Gradation / average	Gamma 2.2	~Gamma 2,23 (avg.)

* CCT reference

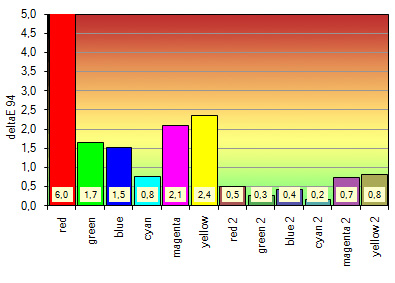

Comparison of "eciRGB_v2" image mode with the ECI-RGB 2.0 working colour space

eciRGB_v2 image mode	Goal	Measured
White point / CCT Kelvin	D50 (5002)	4889
White point XYZ (normalised)	96.42 100.00 81.51	96.91 100.00 80.82
DeltaE for target white point	-	1,61
DeltaE for black body curve*	- (0,07)	0,73
Luminance / cd/m²	140,00	157,4
Black point / cd/m²	Nativ	0,22
Contrast / x:1	Nativ	715
Gradation / average	L*	~L*

* CCT reference
