REVIEW: Samsung C27A750X LED Part 8

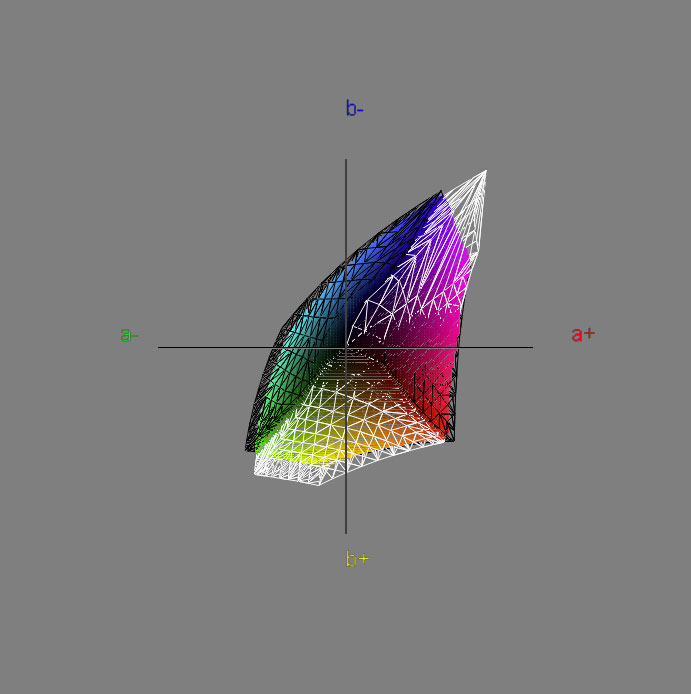

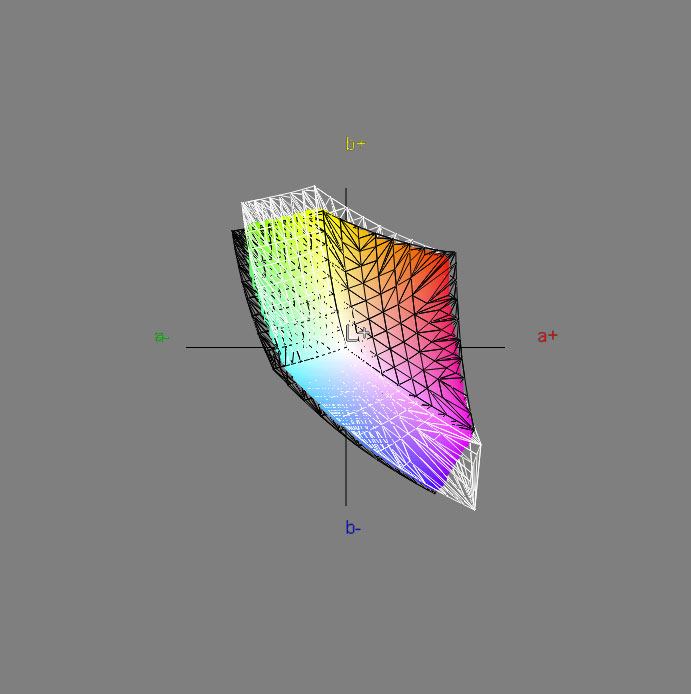

sRGB: 86 % coverage

The ISO Coated and sRGB colour spaces are covered at an average level only by the Samsung C27A750X at 84 and 86 percent respectively. The undercoverage is worst in the green and blue sections. Here, it is very probable that colour gaps will arise in colour-management environments.

Evaluation of colorimetric tests

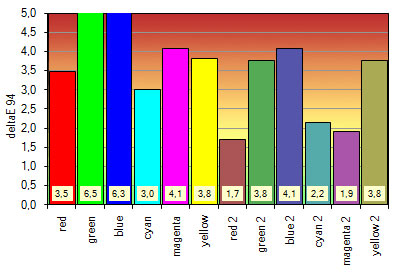

Explanation of DeltaE deviation for colour values and white point.

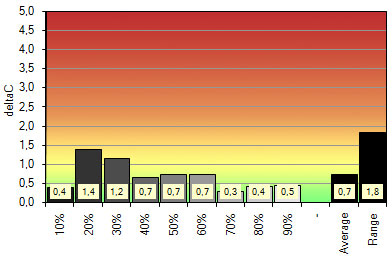

Explanation of DeltaC deviation for grey values.

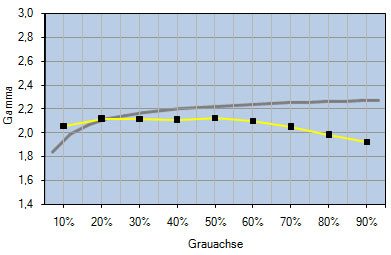

Explanation of display of the gradation.

Comparison of factory settings with sRGB working colour space

Factory setting	Goal	Measured
White point / CCT in Kelvin	D65 (6502)	6761
White point XYZ (normalised)	95.04 100.00 108.88	96.43 100.00 115.20
DeltaE from target white point	-	4,50
DeltaE from black body curve*	- (0,08)	2,98
Luminance/ cd/m²	-	336
Black point / cd/m²	Native	0,41
Contrast / x:1	Native	820
Gradation / average	sRGB (~ Gamma 2,2)	~2,06 (avg.)

* CCT reference
