REVIEW: Eizo CG222W

Warranty LCD/Backlight (Years): 5 incl. Pickup Service
Max. pixel faults (according to ISO 13406-2): Class II
Panel size [inch]: 22
Pixel size [mm]: 0,282
Native resolution: 1.680 x 1.050 (16:10)
Visible screen size/diagonal [mm]: 474 x 296 / 558
Video-In, connector: 2 x DVI-I (analogue and digital)
Vertical frequency [Hz]: 47,5 - 61
Max. horizontal frequency/ video bandwidth [kHz/MHz]: 31,5 - 65 / 120
Color mode preset/user: 1 / 1
LCD pivotable / portrait mode: Yes / Yes
LCD display arm option: Yes
Features: 1x DVI-A to D-Sub VGA cable, 1x DVI-D cable, power cable, USB cable, CD with Color Navigator, quickstart guide, monitor hood
Dimensions (W x H x D) [mm]: 507 x 439 - 521 x 230 (with feet)
Weight [kg]: 11,2
Compliance: TCO 03, CE, TUEV GS, TUEV Ergonomie geprüft, ISO 13406-2, Energy Star
Power consumption On/Stand-by/Off [Watt]: < 75 / 1 / - (manufactor)
Test date: 17.07.2009
Rating:
Picture stability: ++ (digital) ++ (analog)
Viewing angle dependency: +
Contrast: +
Color space: + / ++ (Color Navigator)
Subjective impression of image quality: ++
Shades of gray resolution: ++
Brightness allocation: ++
Interpolation image quality: +/-
Fabrication of case/frame, mechanics: ++
Operating, OSD: +
Suitable for occasional gamer: +
Suitable for hardcore gamer: +/-
Suitable for DVD/Video: + (progressiv)
Price [incl. VAT. in Euros]: 1.100,00

++ very good, + good, +/- satisfactory, - bad, -- very bad

Introduction

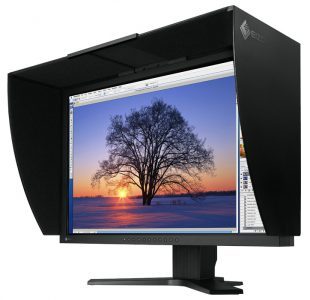

The CG222W rounds off the current product palette of Color Graphic LCDs from Eizo, coming in at the bottom position. However, the user will not have to make any compromises with the 22-inch model. It is a fully fledged monitor with an extensive range of features which we will look at in the course of the test.

A glimpse of the signal inputs emphasises the professional appeal of the Eizo CG222W. It is Spartan in this aspect and offers only two DVI-I inputs.

Like most other models in the CG range, the Eizo CG222W also has an extended colour space, which is a condition for work in the AdobeRGB colour space in particular. Analogue to the 30- and 24-inch versions, this model also contains an S-PVA panel.

In terms of electronics, Eizo has not held back with the CG222W. At the heart of the model is the programmable 12-bit LUT, which allows for hardware calibration with the "Color Navigator" software that is included. The internal computational accuracy is 16-bit. This should mean that even extensive changes to the screen parameters should not have any negative effects on the range of hues. The "Color Navigator" options are very numerous and peak in a flexible colour space emulation.

All results published in this review were obtained via the digital output of a Gainward GTX 280. A Lumagen RadianceXD was used to test the video functions. In addition, an OPPO DV-980H was used as a DVD player and a Sony S350E was used to play Blu-rays.

Scope of supply

The Eizo CG222W is delivered in a simple box which looks very compact because of the comparatively small diagonal of the monitor. There is no need to attach the base, since it is already attached.

The box of the Eizo CG222W.

1 2 3 4 5 6 7 8 > >>
