Max. horizontal frequency/ video bandwidth [kHz/MHz]:
30 – 94 (analog), 30 - 75 (digital) / -
Color mode preset/user:
2 / 1 + 1 (Video)
LCD pivotable / portrait mode:
Yes / Yes
LCD display arm option:
Sub-D cable, DVI-D cable, internal power supply unit, S-Video, Composite, picture in picture function
Dimensions (W x H x D) [mm]:
531 x 435 - 531 x 210
TCO03, TUEV/GS, ISO 13406-2, CE
Power consumption On/Stand-by/Off [Watt]:
75 / - / -
++ (digital) ++ (analog)
Viewing angle dependency:
Subjective impression of image quality:
Shades of gray resolution:
Interpolation image quality:
Fabrication of case/frame, mechanics:
Suitable for occasional gamer:
Suitable for hardcore gamer:
Suitable for DVD/Video:
Price [incl. VAT. in Euros]:
++ very good, + good, +/- satisfactory, - bad, -- very bad
All results issued in this review have been established by using the digital input, with the exception of the test runs for analog image quality, which have been established on the analog input. Our test bed ran with a Gainward 750 Geforce4 Titanium graphics card.
Scope of supply
Together with the display we received a Quick User Guide, a D-Sub cable, a DVI-D cable, a power cable, a CD with pivot software, drivers, monitor profiles, software for making adjustments and a detailed manual in PDF format.

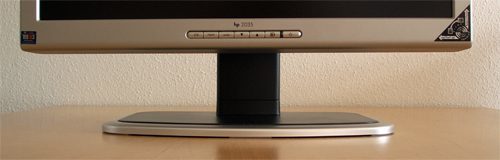

The surface of the monitor and its base is completely made from plastic. The black foot is enclosed in silver color and the front frame is silver as well. The rear side is completely black. The top and the bottom of the panel are rounded off which adds to the great looks.
The frame measures 1.9 cm at the top and the sides and 2.8 cm at the bottom. The distance between the lower edge of the monitor and the desk is 8.5 cm in the lowest setting and 17.5 cm in the highest. Thereby the HP can indeed be adjusted too very high levels but not too very low levels.
