Warranty LCD/Backlight (Years): 5 incl. Pickup Service
Max. pixel faults (according to ISO 13406-2): Class II
Panel size [inch]: 24
Pixel size [mm]: 0,270
Native resolution: 1.920 x 1.200 (16:10)
Visible screen size/diagonal [mm]: 518 x 324 / 611
Video-In, connector: 1 x D-Sub (analogue), 1 x DVI-D (digital), 1 x sound in, 1 x sound out / headphone
Vertical frequency [Hz]: analogue 55 - 76 / digital 59 - 61
Max. horizontal frequency/ video bandwidth [kHz/MHz]: 31 - 94 / 202,5 (digital 162)
Color mode preset/user: 4 / 1

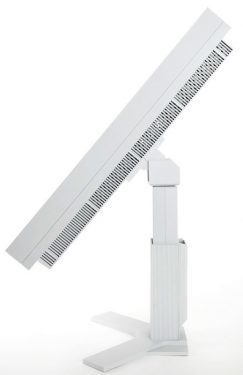

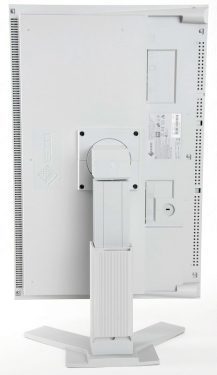

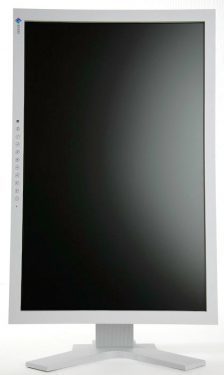

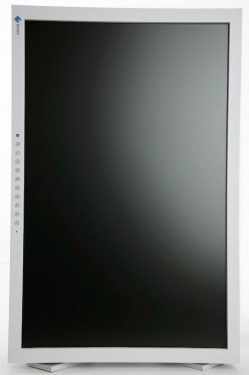

LCD pivotable / portrait mode: Yes / Yes

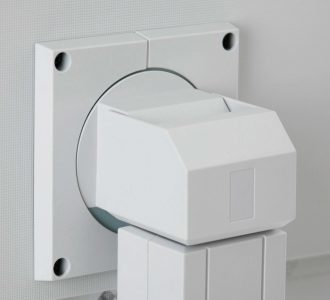

LCD display arm option: Yes
Features: 1 x D-Sub VGA cable, 1x DVI cable, 1 x power cable, 1 x audio cable, CD-ROM with user manual, quickstart guide
Dimensions (W x H x D) [mm]: 566 x 456 - 538 x 209 (with feet)
Weight [kg]: 10,3
Compliance: TCO 03, TUEV GS, CE, TUEV Ergonomie, ISO 13406-2, Energy Star
Power consumption On/Stand-by/Off [Watt]: < 36 / < 2 / 0,4 (power switch off 0)
Test date: 13.02.2009
Picture stability: ++ (digital) ++ (analog)
Viewing angle dependency: +/-
Contrast: +
Color space: ++
Subjective impression of image quality: ++
Shades of gray resolution: ++
Brightness allocation: +
Interpolation image quality: ++
Fabrication of case/frame, mechanics: +
Operating, OSD: +/-
Suitable for occasional gamer: ++
Suitable for hardcore gamer: ++
Suitable for DVD/Video: +
Price [incl. VAT. in Euros]: 625,00

++ very good, + good, +/- satisfactory, - bad, -- very bad


With the EV2411W, Eizo is breaking into the green sector. The EV stands for EcoView and it is thus that the model is primarily being advertised, focusing on the low power consumption and environmental friendliness. In our test, the model will have to prove that it can fulfil these expectations and also perform well in the classic disciplines.

With regard to the model name, we can say the following: the model name EV2411W gains a H if the pillar base is used and an E if the EasyUp base is used. Furthermore, the two colour variants are also indicated in the name: BK for the black model and GY for the light grey one. Accordingly, our test model is the Eizo EV2411WH-GY.

Since there are no multimedia inputs and the model is limited to a VGA- and a DVI input, application of the model as a home cinema screen is eliminated at the outset. However, this is not what the model was designed for. Eizo itself has declared the model to be an office monitor.

All results published in this review were obtained via the digital output of an ASUS 8600 GTS. As an external player device for Blu-ray media, we used the Playstation 3 from Sony, which was connected via a HDMI-DVI cable.

Scope of supply

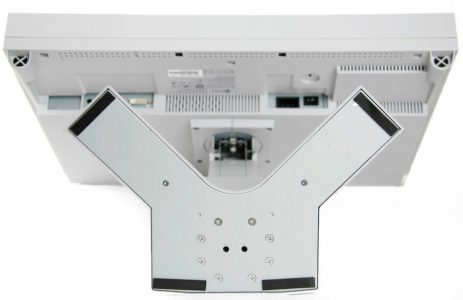

The Eizo EV2411WH-GY comes in a classic brown box. The base is assembled firmly when the model arrives. There is no transport securing switch, so when you are lifting it out, the screen is moved to the maximum height before the rest is lifted out as well.

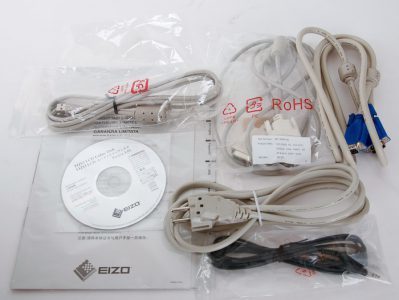

Scope of supply of the Eizo EV2411WH-GY.

The scope of supply is classic: For connecting the model with the computer, a D-Sub VGA cable and a DVI cable are supplied. In addition, an audio cable is also included in the box. The internal power unit is provided with power via an included power cable with an external device port. The USB cable included was somewhat curious; after all, the model does not have a USB connection.

The complete version of the manual is included in hard copy and also in PDF format on the CD included, which otherwise contains some colour profiles and the latest version of ScreenManager Pro.
