Warranty LCD/Backlight (Years): 5 incl. Pickup Service
Max. pixel faults (according to ISO 13406-2): Class II
Panel size: 22"
Pixel size [mm]: 0,282
Native resolution: 1.680 x 1.050
Visible screen size/diagonal [mm]: 474 x 296 / 560
Video-In, connector: 1 x D-Sub analog and 1 x DVI-I analog & digital
Vertical frequency [Hz]: 49 - 61 (analog)
59 - 61 (digital)
Max. horizontal frequency/ video bandwidth [kHz/MHz]: 24 - 82 (analog) / 150
31 - 65 (digital) / 120
Color mode preset/user: 4 / 1
LCD pivotable / portrait mode: Yes / Yes
LCD display arm option: Yes
Features: D-Sub cable, DVI-D cable, USB hub, USB cable, power cable, integrated speakers, audio cable, screenmanger, brightness sensor, headphones connector and WideGamut Display
Dimensions (W x H x D) [mm]: 507 x 351,5 - 516,5 x 280 (with feet)
Weight [kg]: 13,1
Compliance: TCO'03; CE; TUEV ERGONOMIE; TUEV GS; Energy Star; FCC Class B; ACN; AS; ISO 13406-2 (pixel faults class II)
Power consumption On/Stand-by/Off [Watt]: 75 / max. 2 / max. 1
Test date: 1/17/2008
Picture stability: ++ (digital) ++ (analog)
Viewing angle dependency: ++
Contrast: ++
Color space: ++
Subjective impression of image quality: ++
Shades of gray resolution: ++
Brightness allocation: +
Interpolation image quality: +
Fabrication of case/frame, mechanics: ++
Operating, OSD: +
Suitable for occasional gamer: +
Suitable for hardcore gamer: +/-
Suitable for DVD/Video: +
Price [incl. VAT. in Euros]: 580,00

++ very good, + good, +/- satisfactory, - bad, -- very bad


Monitors with 22-inch screens are the most popular amongst LCD displays at the moment. A fast image formation time together with a comparatively low price have contributed to this position. Gamers and offices users can opt for a 22-inch TN panel without further consideration, since the viewing angles are rather unimportant in both these areas of application. However, if you wish to carry out tasks on your 22-inch monitor where colour is crucial, you would have to go for another screen size. 22-inch TN panel models are simply not suitable for this sort of work.

The long wait for a 22-inch model with VA panel technology and a viewing angle of 178 degrees has come to an end. The first manufacturer to break into this new area, Eizo is now offering the S2231W with an S-PVA panel by Samsung. And the crowning glory is that the model is still a Wide Gamut LCD, which is capable of reproducing an extended colour space.

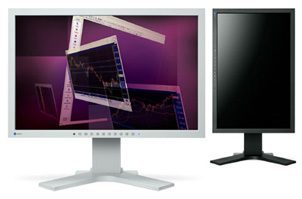

Eizo S2231WH-GY (left) and S2231WH-BK (right).

Eizo offers the S2231W in 2 model variants, with each variant available in 2 colours. The S2231WH comes with a pillar-style base and comes in the colour versions S2231WH-GY (grey) and S2231WH-BK (black). We tested the S2231WE, which is equipped with an EasyUp base. Here, too, the colour variants S2231WE-GY (grey) and S2231WE-BK (black) are available.

Eizo S2231WE-BK (left) and S2231WE-GY (right).

All results published in the test were obtained via the digital input via an XFX GeForce 8800GTX. Only the analogue image quality was tested on an analogue connection.
