REVIEW: Samsung 2333HD

Warranty LCD/Backlight (Years): 3 incl. Pickup Service
Max. pixel faults (according to ISO 13406-2): Class II
Panel size [inch]: 23
Pixel size [mm]: 0,265
Native resolution: 1.920 x 1.080 (16:9)
Visible screen size/diagonal [mm]: 509 x 287 / 580
Video-In, connector: 1 x D-Sub (analogue), 1 x DVI-D (digital), 2 x HDMI (digital), 1 x Component (YUV), 1 x Scart, DTV-Tuner (DVB, ATSC), optical out, CI Slot, 3,5 mm stereo connector
Vertical frequency [Hz]: 56 - 75
Max. horizontal frequency/ video bandwidth [kHz/MHz]: 30 - 81 / -
Color mode preset/user: 5 (+3) / 0
LCD pivotable / portrait mode: No / No

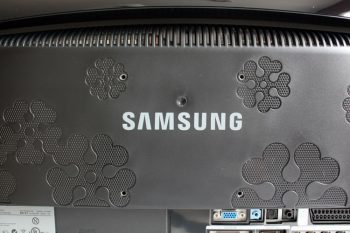

LCD display arm option: Yes
Features: D-Sub VGA cable, power cable, audio cable, remote control with 2 AAA batteries, CD-ROM with driver and Software, quick setup guide, guarantee card, product booklet
Dimensions (W x H x D) [mm]: 557,8 x 415,3 x 218,8 (with feet)
Weight [kg]: 6,1
Compliance: Energy Star, CE
Power consumption On/Stand-by/Off [Watt]: 58 / < 1 / -
Test date: 29.05.2008
Rating:
Picture stability: ++ (digital) + (analogue)
Viewing angle dependency: +/-
Contrast: +
Color space: +
Subjective impression of image quality: +
Shades of gray resolution: +/-
Brightness allocation: +/-
Interpolation image quality: +
Fabrication of case/frame, mechanics: +/-
Operating, OSD: +
Suitable for occasional gamer: ++
Suitable for hardcore gamer: +
Suitable for DVD/Video: +
Price [incl. VAT. in Euros]: 230,00

++ very good, + good, +/- satisfactory, - bad, -- very bad

Introduction

SyncMaster 2333HD is the model description of the new multimedia monitor from Samsung. Both in PC mode and as a TV model in particular, the 2333HD should enthuse the user. Data such as FullHD resolution, 16:9 widescreen format, integrated DVB-T and analogue tuner, integrated speakers, a contrast of 10.000:1 and numerous inputs such as HDMI, Component (YUV) and Scart, to name but a few, make a clear statement. A fast TN panel with a response time of 5 ms grey-to-grey and 16,7 million reproducible colours is integrated into the Samsung 2333HD.

A maximum brightness of 300 cd/m² should allow the user to work in a wide variety of lighting conditions. HDCP support for the playback of copy-protected content has now become standard, and this is also the case for the 2333HD. The manufacturer's indications therefore sound very promising. We would like to find out how the Samsung 2333HD performs in the respective areas of application and have looked at it more closely.

The Samsung 2333HD was connected and tested via the digital DVI output of a Sapphire Radeon HD 4870. Calibration was carried out using the iColor software from Quato and an i1 colorimeter from X-rite. The Sony BDP-S 350 Blu-ray Player was used as an external player source for blu-ray media, connected via a HDI cable.

Scope of supply

Samsung delivers the 2333HD in a very compact box, which has a comfortable handle for carrying. The most important technical data are printed on the box and are clearly visible. The base plate and monitor can be found in a fitted Styrofoam case and are therefore protected from slipping. The connecting piece between the monitor and the base and the other accessories are also well packed. Since Samsung focuses on the trendy piano lacquer surface for the 2333HD, the plate, connecting piece and monitor are also covered with protective sheets in order to protect them from scratches.

The packing of the Samsung 2333HD.

In relation to the connectors present on the Samsung 2333HD, the scope of supply for connector cables seems rather meagre. Only a D-Sub VGA cable can be found amongst the accessories. However, in return, Samsung provides a good quality remote control. Furthermore, there are an audio and a power cable, 2 AAA batteries for the remote control, a cable holder and a getting started guide, a guarantee card, a product booklet and a CD containing the monitor driver, a detailed user manual and the Natural Color software.

Accessories provided with the Samsung 2333HD.

1 2 3 4 5 6 7 8 > >>
