REVIEW: NEC LCD2470WNX

Author: Timur Sen und Lukas Schneider
07/07/2007

Translation by Siobhan Hayes

Manufacturer: NEC

Warranty LCD/Backlight (Years):	3 incl. Pickup Service
Max. pixel faults (according to ISO 13406-2):	Class II
Panel size:	24"
Pixel size [mm]:	0,270
Native resolution:	1.920 x 1.200
Visible screen size/diagonal [mm]:	518 x 324 / 610
Video-In, connector:	1 x D-Sub analog / 1 x DVI-D digital
Vertical frequency [Hz]:	56 - 85
Max. horizontal frequency/ video bandwidth [kHz/MHz]:	31,5 - 93,8 / -
Color mode preset/user:	5 / 1
LCD pivotable / portrait mode:	Yes / Yes
LCD display arm option:	Yes
Features:	D-Sub Cable, DVI-D cable, USB cable, USB hub, power cable
Dimensions (W x H x D) [mm]:	559 x 420,3 - 530,3 x 270 mm
Weight [kg]:	12,4
Compliance:	TCO'03; CE; TUEV ERGONOMIE; TUEV GS; GEEA/Energy label; Energy Star; FCC Class B; PCT/Gost; UL/C-UL oder CSA; ISO 13406-2 (pixel faults class II); MPR II/ MPR III; RoHS
Power consumption On/Stand-by/Off [Watt]:	92 / < 2 / -
Test date:	07.07.2007
Rating:
Picture stability:	++ (digital) ++ (analog)
Viewing angle dependency:	++
Contrast:	++
Color space:	+
Subjective impression of image quality:	++
Shades of gray resolution:	+
Brightness allocation:	+
Interpolation image quality:	++
Fabrication of case/frame, mechanics:	++
Operating, OSD:	+
Suitable for occasional gamer:	+
Suitable for hardcore gamer:	+/-
Suitable for DVD/Video:	+
Price [incl. VAT. in Euros]:	949,00

++ very good, + good, +/- satisfactory, - bad, -- very bad

Introduction

NEC has now entered the mainstream market with a 24-inch monitor in the form of the MultiSync LCD2470WNX. Like the popular Dell 2407WFP, this monitor features a Samsung S-PVA panel, which gives it a high contrast ratio of 1,000:1 and brightness of up to 500 cd/m².

The core features of this NEC 24-inch monitor also include Overdrive and a related 6 ms response time as well as extensive viewing angles of 176 degrees. Thanks to its complete range of ergonomic functions, the LCD2470WNX will find application in the office area in particular.

NEC has a not undeserved reputation for producing excellent all-round monitors and as such, the MultiSync 2470WNX will certainly also not just be used for office work. You can learn about which areas of application the 24-inch monitor is suitable for and whether or not the title of “All-round” is justified in our detailed PRAD review.

With the exception of the analogue image quality, which was tested via the analogue (D-Sub VGA) connection, all results published here were obtained in digital mode via DVI-D. We used an Nvidia GeForce 7800GT graphics card with two DVI-I outputs.

Scope of supply

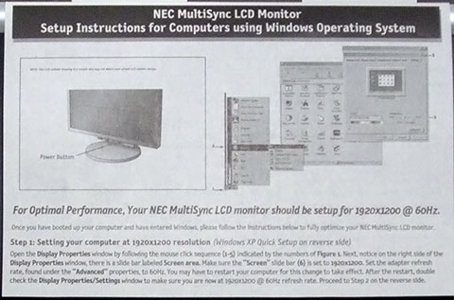

The NEC LCD2470WNX comes in a simple cardboard box which is lined generously with anti-static foil. When you lift the monitor out of its packaging, you will find both a D-Sub and a DVI-D cable, a USB cable for the integrated USB hub, a printed multi-lingual installation guide and a CD containing software.
