1 x D-Sub (analogue), 1 x DVI-D (digital), 2 x HDMI (digital), 1 x Audio In/Out, 1 x Optical Audio Out (SPDIF), 1 x S-Video In, 1 x Video In, 2 x L/R Audio In, 1 x PrPbY In
Vertical frequency [Hz]:
56 - 75 (video inputs 50 and 60 Hz)
Max. horizontal frequency/ video bandwidth [kHz/MHz]:
24,7 – 93,8 / 210
Color mode preset/user:
8 / 1
LCD pivotable / portrait mode:
Yes / Yes
LCD display arm option:
Yes (VESA 200 x 100)
1 x D-Sub VGA cable, 1 x HDMI cable, 1 x DVI cable, power cable, audio cable, remote control, CD-ROM with user manual
Dimensions (W x H x D) [mm]:
559 x 401 x 270 (with feet)
TCO´06, CE, ISO 13406-2, EnergyStar, FCC Class B
Power consumption On/Stand-by/Off [Watt]:
110 / < 2 / 0
++ (digital) ++ (analog)
Viewing angle dependency:
Subjective impression of image quality:
Shades of gray resolution:
Interpolation image quality:
Fabrication of case/frame, mechanics:
Suitable for occasional gamer:
Suitable for hardcore gamer:
Suitable for DVD/Video:
Price [incl. VAT. in Euros]:
++ very good, + good, +/- satisfactory, - bad, -- very bad
With the 24WMGX³, NEC is offering a multimedia device in a class of its own. Equipped with numerous connectors and a remote control, this is clearly not purely a computer screen, but is a display that can also be used for video material. This is also confirmed by the fact that a new AMVA panel (Advanced Multi-Domain Vertical Alignment) has been integrated into the model, which should display more powerful and natural colours and minimise streaking as well as paling of the colours when the screen is viewed from the side.
Thanks to its large number of connectors and modern panel, the model seems to be excellently equipped for these tasks. In the course of our test, the NEC 24WMGX³ will have to show how well it can be used as a multimedia device.

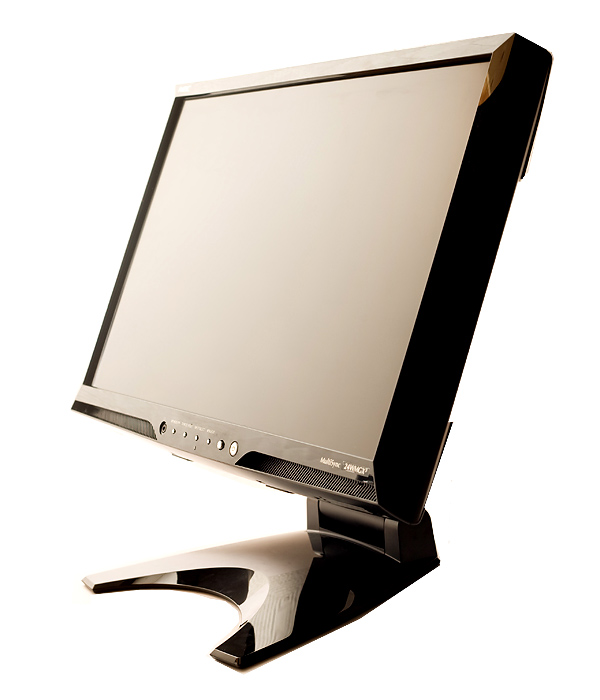

NES 24WMGX with new AMVA panel.
All results published in the test were obtained via the digital output of an ASUS 8600GTX. A Sony Playstation 3 was used to test the monitor’s video functions and for calibration, we used a Quato colorimeter as well as the iColor Display 3.0.5 software.

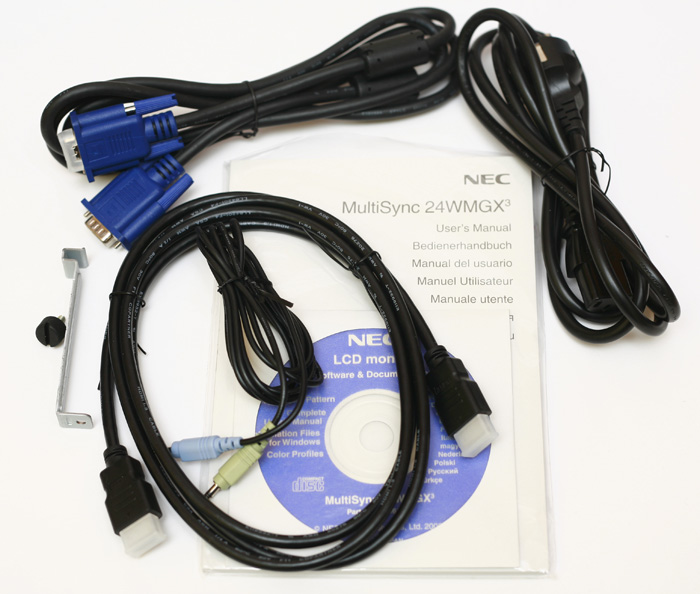

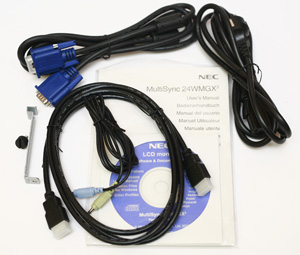

Scope of supply
The NEC 24WMGX³ comes in a compact box. The base is already mounted when the model arrives and is attached in such a way to save much space including the transport safety catch.
The scope of supply matches the large variety of connectors: for connection with the computer, a VGA cable (D-Sub), a DVI and a HDMI cable are provided. The internal power unit is provided with power via a power cable which is included and also offers a connector for external devices. A 3,5 mm jack audio cable is also included.
